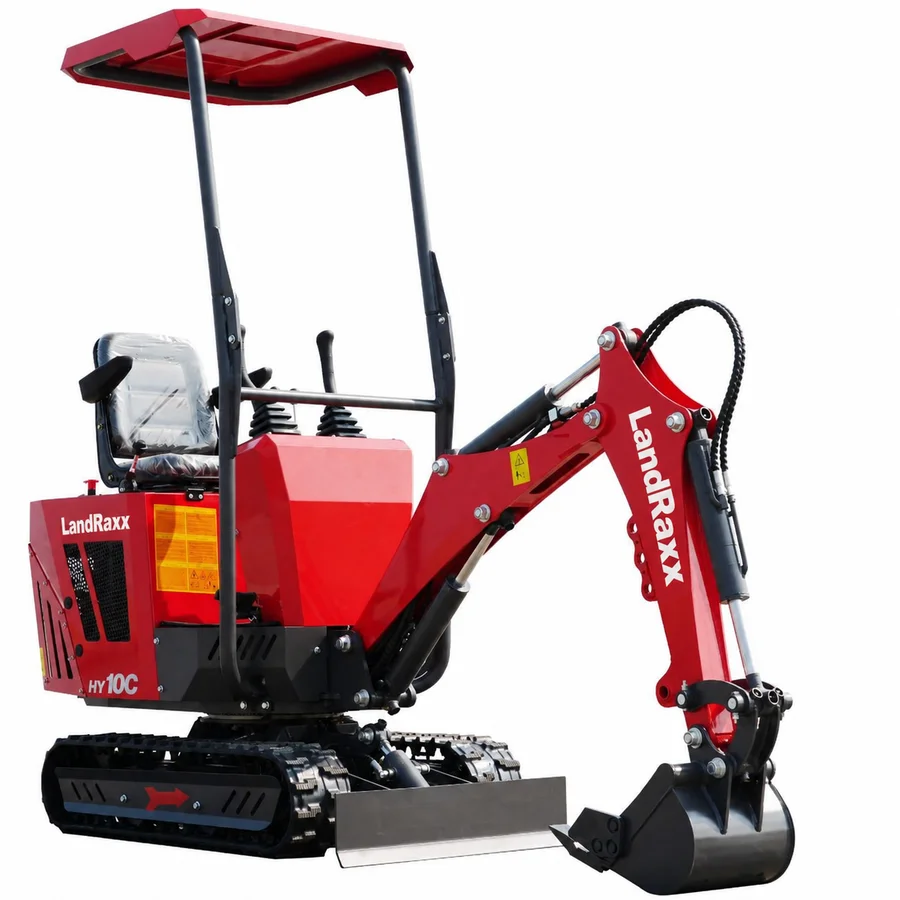

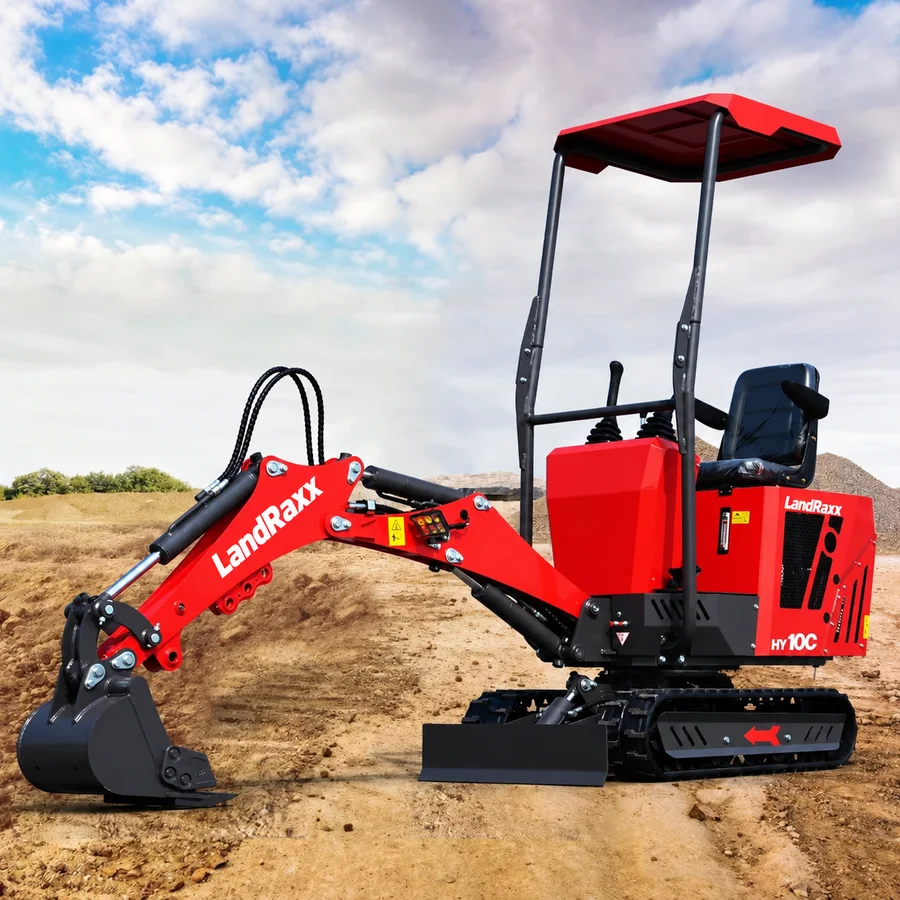

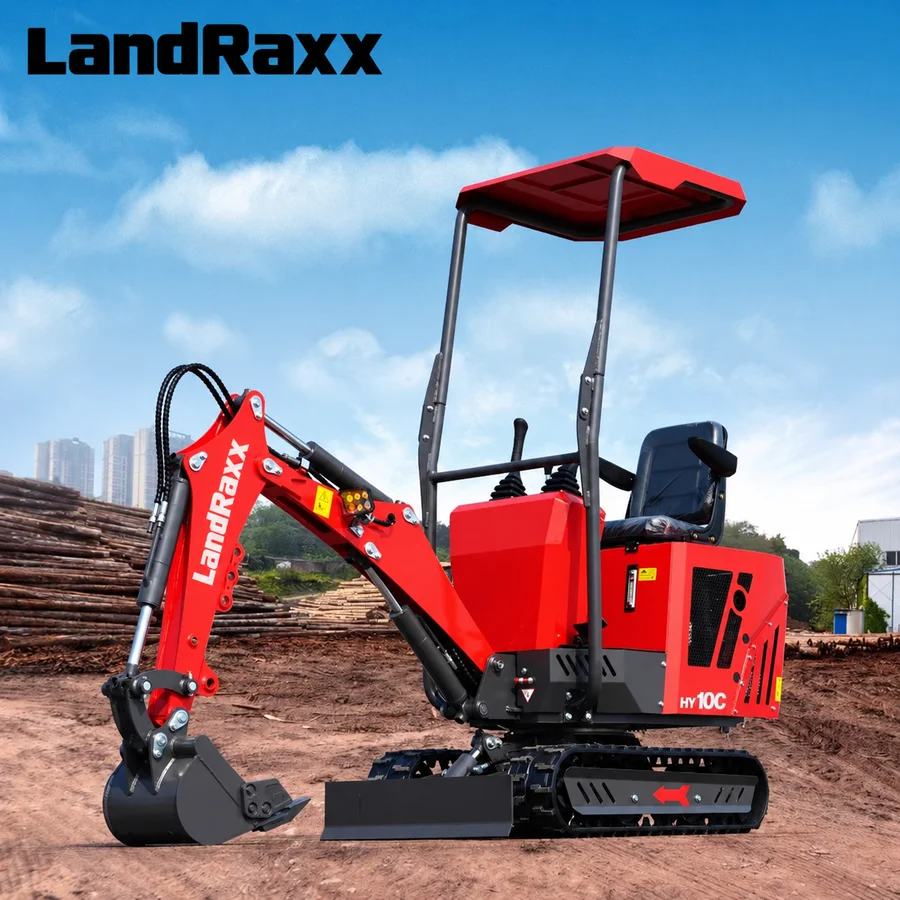

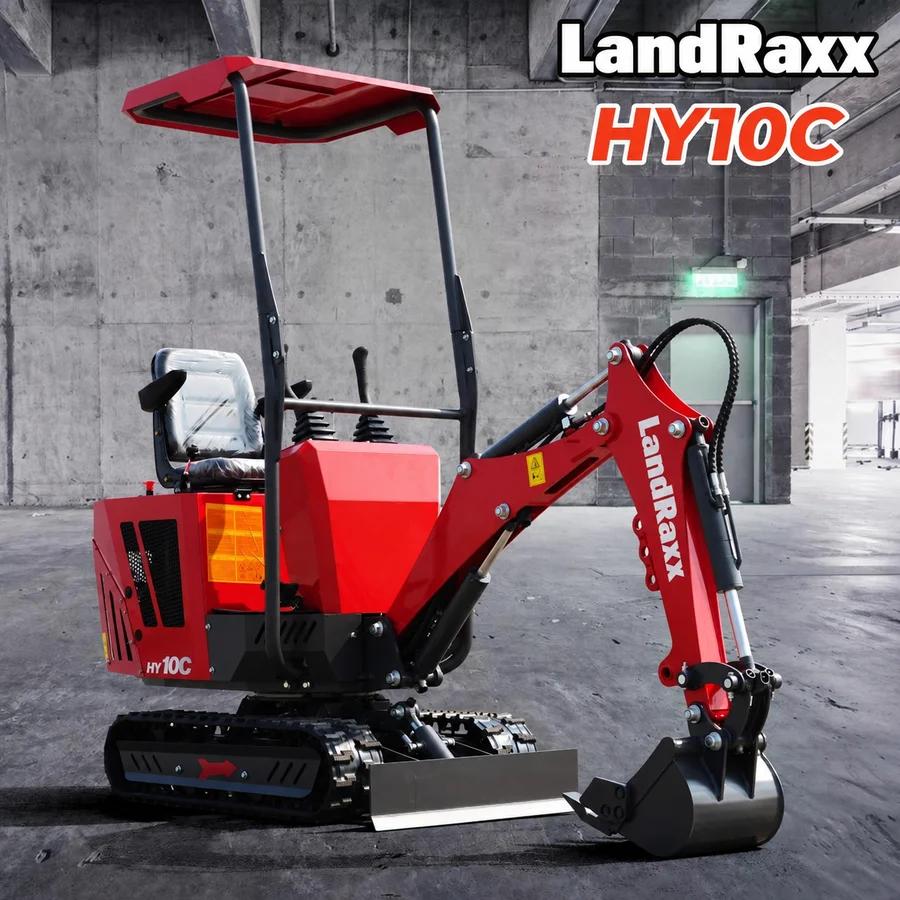

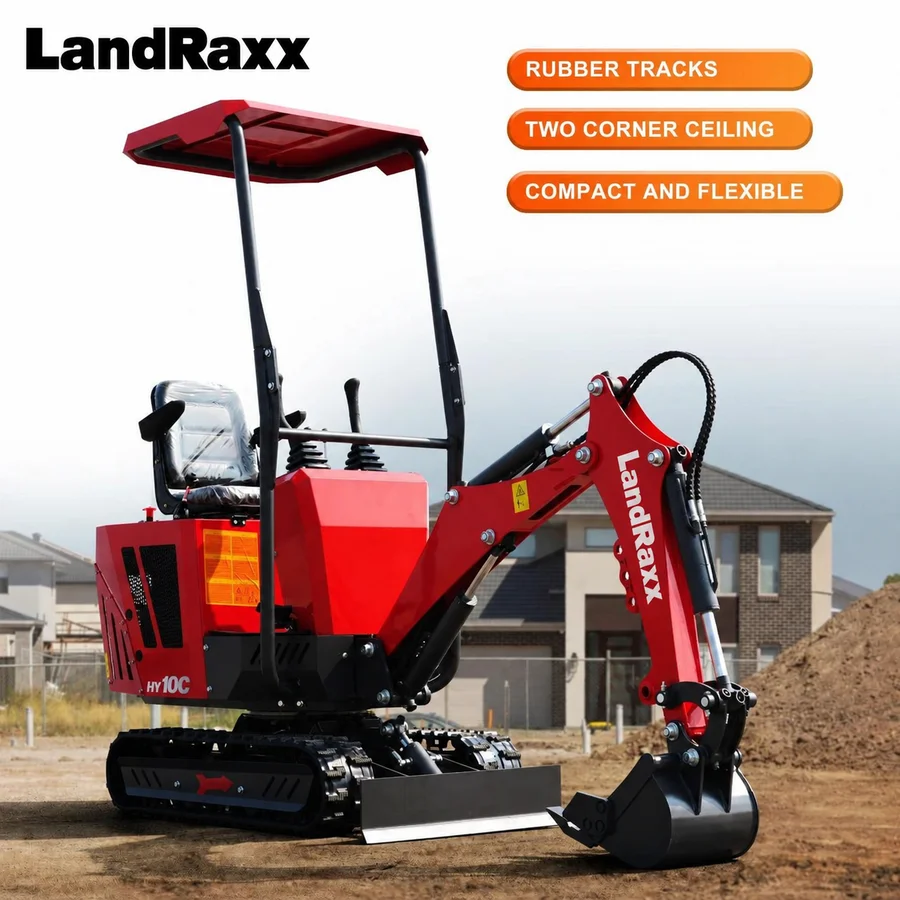

A 900 kg compact excavator — the narrowest machine in the LandRaxx range. At 780 mm closed it clears a standard single gate, perfect for landscaping and drainage work in confined back yards.
Includes free delivery to the continental United States.
New machine, in US stock, ready to ship.
Added to your basket. View basket
Buy now adds this machine to your basket and goes straight to checkout.
Built for the job
780 mm closed chassis clears the narrowest residential gate openings
900 kg — moves on any braked trailer rated for 2,000 lb
1,580 mm digging depth covers most drainage and footings work
Full specification
| Operating weight | 900 kg |
|---|---|
| Engine | Diesel, 7 kW |
| Max. travel speed | 1.4 km/h |
| Digging depth | 1,580 mm |
| Reach at ground | 3,040 mm |
| Dump height | 2,000 mm |
| Chassis width (tele) | 780 / 920 mm |
| Track width | 180 mm |
|---|---|
| Boom swing | 50° left / 55° right |
| Hydraulic pressure | 16 MPa |
| Flow rate | 19 L/min |
| Fuel tank | 11 L |
| Swing speed | 11 rpm |
| Gradeability | 30% |
| Warranty | 2 yr parts, 1 yr engine |
Specifications are nominal and may vary slightly by production batch.
Questions
At 780 mm closed the HY10C clears nearly every single residential gate. Always measure the narrowest point — gate post to gate post or to a step — before delivery.
900 kg fits comfortably on a single-axle equipment trailer rated for 2,000 lb. A standard pickup-truck tow package is usually enough — verify your tow rating first.
Yes — 16 MPa system pressure and 19 L/min flow is enough for a class-appropriate demolition hammer. Confirm the breaker flow requirements before ordering.
2 years on parts and 1 year on the engine. We hold spares in stock; see the warranty policy page for the full terms.
