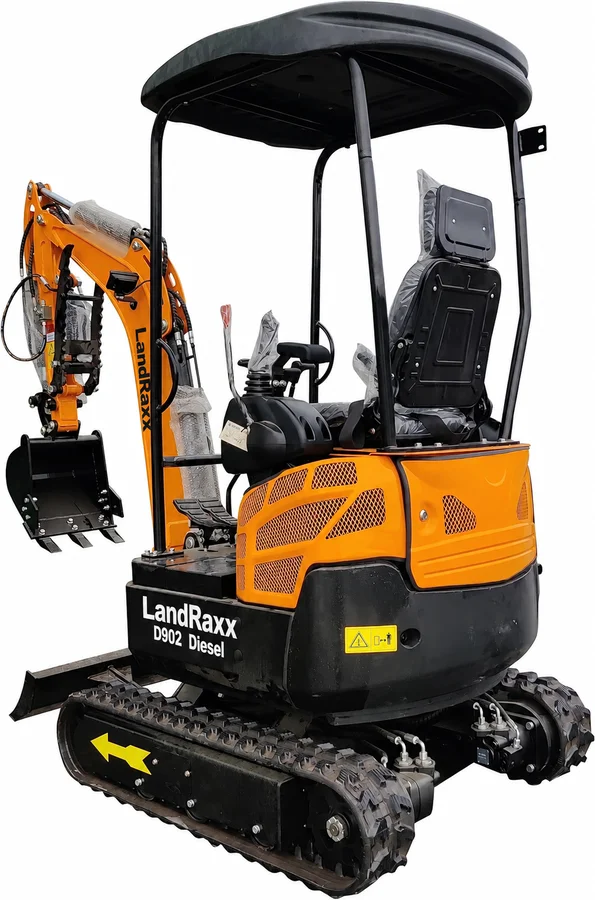

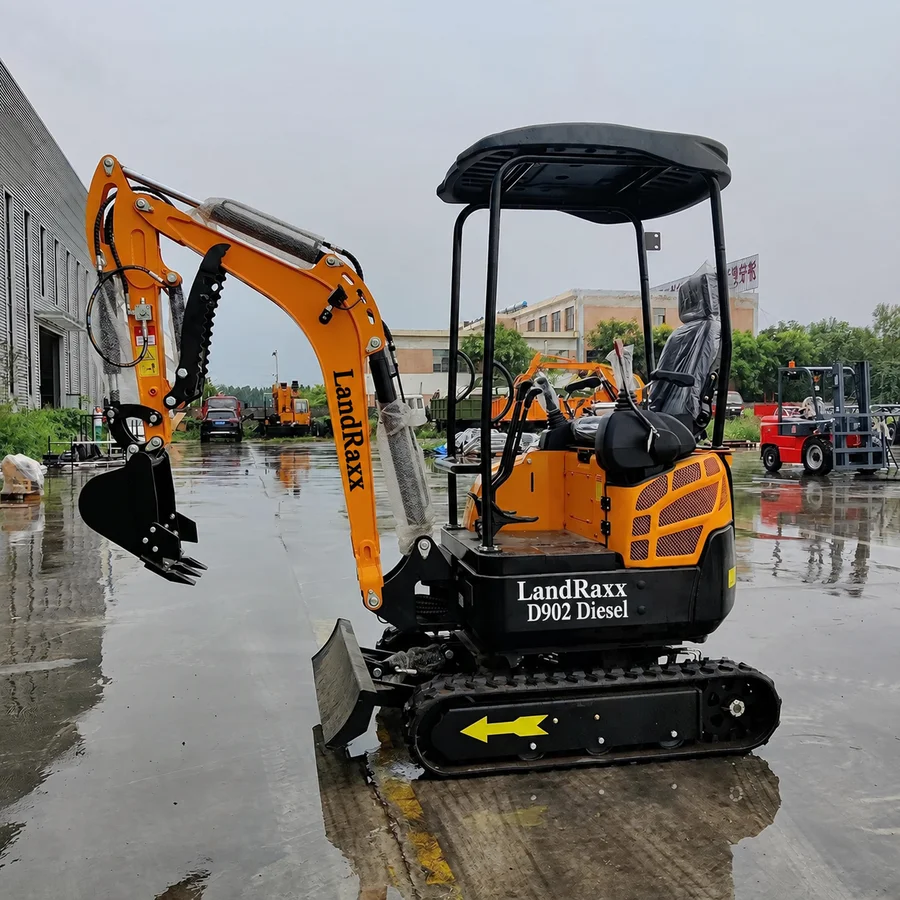

A 2,500 kg diesel excavator with full cab enclosure option, a three-piece boom for maximum reach, and pilot-controlled hydraulics. Built for productive eight-hour shifts on residential construction sites.
Includes free delivery to the continental United States.
New machine, in US stock, ready to ship.
Added to your basket. View basket
Buy now adds this machine to your basket and goes straight to checkout.

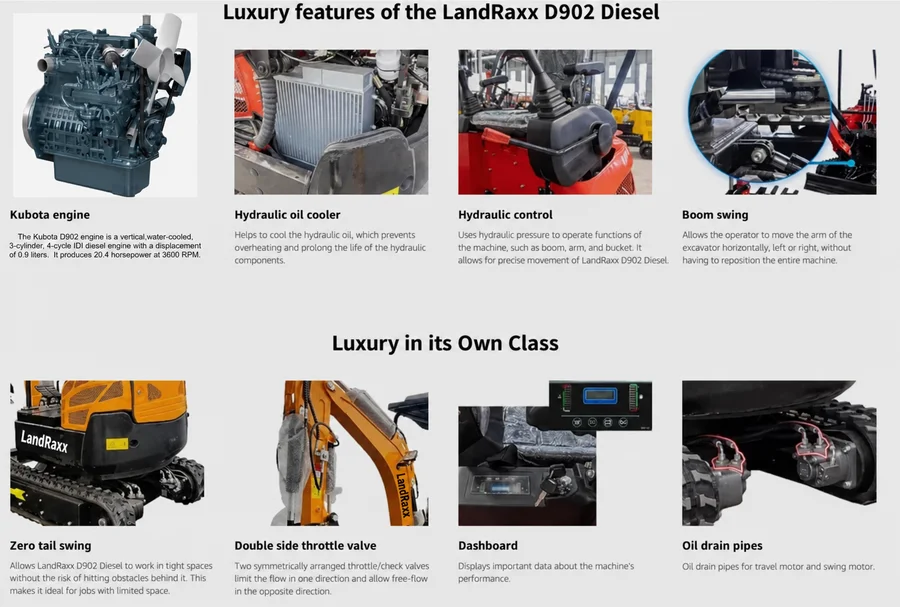

Built for the job
2,650 mm digging depth — reaches 8 ft 8 in below grade
Three-piece boom: extra reach without moving the machine
Pilot-controlled hydraulics for smooth, fatigue-free operation
Full specification
| Operating weight | 2,500 kg |
|---|---|
| Engine | Diesel, 18.5 kW |
| Max. travel speed | 4.5 km/h |
| Digging depth | 2,650 mm |
| Reach at ground | 4,500 mm |
| Dump height | 3,100 mm |
| Slew torque | 9.3 kN·m |
| Track width | 300 mm |
|---|---|
| Boom type | Three-piece |
| Hydraulic pressure | 20 MPa |
| Flow rate | 60 L/min |
| Fuel tank | 30 L |
| Swing speed | 9 rpm |
| Gradeability | 35% |
| Warranty | 2 yr parts, 1 yr engine |
Specifications are nominal and may vary slightly by production batch.
Questions
At 2,500 kg you need a low-boy or equipment trailer rated for at least 6,000 lb. A Class 5 truck or larger is typically required. Check state transport regulations for your route.
Yes — the D902 accepts the LandRaxx bolt-on ROPS/FOPS cab. It ships separately and bolts to the existing frame. Contact us to add it to your order.
Standard auxiliary lines are fitted at the stick end. Flow is 60 L/min at 20 MPa — suitable for heavy-duty thumbs, breakers and large augers.
With the correct trailer, yes. Check your state overwidth and overweight transport requirements. A pilot vehicle may be needed in some states.
